Building Advanced REST Applications: cetan-rest-201

cetan-rest-201 extends the introductory concepts from cetan-rest-101 and demonstrates how to build more advanced REST applications using the CETAN REST C++ API. This example introduces dynamic parameters, URL‑encoded values, file uploads, JSON responses, logging using SLog, and deploy multiple applications on a single CETAN server.

Overview

In this example, you will implement a User web service with multiple REST resources, including a simple greeting endpoint and a more advanced user‑creation endpoint that accepts an uploaded avatar image and returns a JSON response.

Project Structure

The project follows the same layout as cetan-rest-101, with include, src, and lib directories, and produces a CETAN REST application file named cetan-rest-201.ctn.

User Service

The User service defines the resources below:

GET /user/say-hello/{fname}/{lname} — returns an HTML greeting using dynamic URI parameters.
POST /user/create — creates a new user, processes an uploaded avatar file, logs activity, and returns a JSON response.
GET /user/hello — returns an HTML greeting to the authenticated User using dynamic AuthenticatedUser parameters.
GET /user/authn — returns an JSON greeting to the authenticated User using dynamic Request parameters.

User.h


#ifndef USER_H
#define USER_H

#include "SLog.h"
#include "Param.h"
#include "Request.h"
#include "Resource.h"
#include "Response.h"
#include "FileUpload.h"
#include "WebService.h"
#include "AuthenticatedUser.h"

#include <vector>
#include <string>
using namespace std;
using namespace ctn;
class User : public WebService {
public:
	const string tag = "User";
	User();
	virtual ~User();
private:
	SLog slog;
	Response get_request(Request req) noexcept;
	Response hello(AuthenticatedUser user) noexcept;
	Response say_hello(Param fname, Param lname) noexcept;
	Response create_user(Param fname, Param lname, FileUpload avatar) noexcept;
	vector register_resources() const override;
};

User.cpp


#include "User.h"
#include "JSON.h"
#include "RestAPI201.h"
#include "RouteBuilder.h"
#include "ResourceBuilder.h"
#include <string_view>

User::User() : WebService("/user") {
   slog = SLog("RestAPI");
}

Response User::get_request(Request req) noexcept {
   JSON json;
   Response resp;

   try {
      resp.status(200);
      if(req.authenticated()) {
         AuthenticatedUser user = req.get_authenticated_user();
         json.push_back("authenticated", true);
         json.push_back("user", user.get_display());
      }
      else {
         json.push_back("authenticated", false);
      }
      resp.header(Response::Content_Type, "application/json");
      resp.body(move(json.to_string()));
   }
   catch(const exception& e) {
      slog.error(tag, "exception occurred: ", e.what());
      return Response(500);
   }
   catch(...) {
      slog.error(tag, "unknow exception occurred");
      return Response(500);
   }
   return resp;
}

Response User::hello(AuthenticatedUser user) noexcept {
   string msg;
   Response resp;

   msg.append("<html><head>")
      .append("<meta charset=\"utf-8\">")
      .append("<title>RestAPI User Management</title></head>")
      .append("<body><center><font size=\"25\">Hello, ");
   if(!user.get_display().empty())
      msg.append(user.get_display());
   else
      msg.append(user.get_id());
   msg.append("!</font></center></body></html>");
   resp.status(200);
   resp.header(Response::Content_Type, "text/html; charset=utf-8");
   resp.body(move(msg));
   return resp;
}

Response User::say_hello(Param<string> fname, Param<string> lname) noexcept {
   string msg;
   Response resp;

   msg.append("<html><head>")
      .append("<meta charset=\"utf-8\">")
      .append("<title>RestAPI User Management</title></head>")
      .append("<body><center><font size=\"25\">Hello, ")
      .append(fname.value())
      .append(" ")
      .append(lname.value()).append("!</font></center></body></html>");
   resp.status(200);
   resp.header(Response::Content_Type, "text/html; charset=utf-8");
   resp.body(move(msg));
   return resp;
}

Response User::create_user(Param<string> fname, Param<string> lname, FileUpload avatar) noexcept {
   JSON json;
   Response resp;
   int user_id = 0;
   string_view firstname, lastname;

   try {
      slog.info(tag, "create user");
      slog.info(tag, "fname: ", fname.value());
      slog.info(tag, "lname: ", lname.value());

      //get user first and last name from request
      firstname = string_view(fname.value());
      lastname = string_view(lname.value());

      //call create usr implemented logic
      RestAPI201* app = static_cast(get_app());
      if((user_id = app->make_user(firstname, lastname)) != -1) {
         json.push_back(fname.name(), firstname);
         json.push_back(lname.name(), lastname);
         json.push_back("id", user_id);
         slog.info(tag, "avartar file: ", avatar.filename());
         avatar.move_file(this, "images");
         json.push_back(avatar.name_id(), avatar.filename());
      }
      else
         json.push_back("error", "user already exists");
      resp.status(200);
      resp.body(move(json.to_string()));
   }
   catch(...) {
      resp.status(500);
   }
   return resp;
}

vector User::register_resources() const {
   ResourceBuilder builder;
   vector res;

   auto* r0 = builder.GET("/hello", &User::hello)
               .build(AuthenticatedUser());
   res.emplace_back(r0);

   auto* r1 = builder.GET("/say-hello/{fname}/{lname}", &User::say_hello)
               .build(Param<string>("fname"), Param<string>("lname"));
   res.emplace_back(r1);

   auto r2 = builder.POST("/create-user", &User::create_user)
               .produce("application/json")
               .build(Param<string>("fname"), Param<string>("lname"), FileUpload("avatar"));
   res.emplace_back(r2);

   auto r3 = builder.GET("/authn", &User::get_request)
               .produce("application/json")
               .build(Request());
   res.emplace_back(r3);

   return res;
}

User::~User() {
}

REST Application

The RestAPI201 class derives from REST and registers the User service. The resulting application is deployed under a configurable root URL, such as /rest-201.

RestAPI201.h


#ifndef RESTAPI201_H
#define RESTAPI201_H

#include "SLog.h"
#include "REST.h"
#include "WebService.h"
#include <set>

using namespace std;
using namespace ctn;
   class RestAPI201 : public REST {
public:
   RestAPI201();
   int make_user(string_view fname, string_view lname);
   virtual ~RestAPI201();
private:
   SLog slog;
   static int id;
   REST* create_cetan_app() const override final;
   set<WebService*> register_services() const override final;
};
#endif /* RESTAPI201_H */

RestAPI201.cpp


#include "User.h"
#include "REST.h"
#include "RestAPI201.h"

int RestAPI201::id = 1000;
RestAPI201::RestAPI201() {
   slog = SLog("RestAPI");
}

REST* RestAPI201::create_cetan_app() const {
   return new RestAPI201();
}

int RestAPI201::make_user(string_view fname, string_view lname) {
   int usr_id;
   static vector<pair<int, pair<string, string>>> users;
   for(auto it = users.begin(); it != users.end(); it++) {
      if((it->second.first == fname) && (it->second.second == lname)) {
         slog.debug(tag, "user already exists");
         return -1;
      }
   }
   usr_id = ++id;
   users.emplace_back(usr_id, make_pair(fname, lname));
   return usr_id;
}

set<WebService*> RestAPI201::register_services() const {
   set<WebService*> services;
   services.emplace(new User());
   return services;
}

RestAPI201::~RestAPI201() {
}

Deployment

After building the project, place cetan-rest-201.ctn in the server’s ext directory and add an application entry to cetan_config.xml.
With both cetan-rest-101 and cetan-rest-201 deploy, the application configuration look like below:


   <applications>
      <app name="cetan-rest-101">
         <root_url>/rest-101</root_url>
         <number_thread>1</number_thread>
         <app_file>cetan-rest-101.ctn</app_file>
      </app>
      <app name="cetan-rest-201">
         <root_url>/rest-201</root_url>
         <number_thread>2</number_thread>
         <app_file>cetan-rest-201.ctn</app_file>
         <protect_resources>
            <uris>/rest-201</uris>
            <authn>cetan_basic_file_authn</authn>
         </protect_resources>
      </app>
   </applications>

Restart the CETAN Web Application Server to activate the new REST application.

Config SLog

Add the below in slog_config.xml file to enable logging.



  <target name="restapi_file">
     <type>file</type>
     <file_name>restapi.log</file_name>
     <max_number_file>10</max_number_file>
  </target>

  <logger name="RestAPI">
     <target>restapi_file</target>
     <accept_level>DEBUG</accept_level>
  </logger>

  Testing

    Access the greeting endpoint in a browser:

  https://your-server.com/rest-201/user/say-hello/John/Smith


    Use a REST client to test the user‑creation endpoint:

  POST https://your-server.com/rest-201/user/create

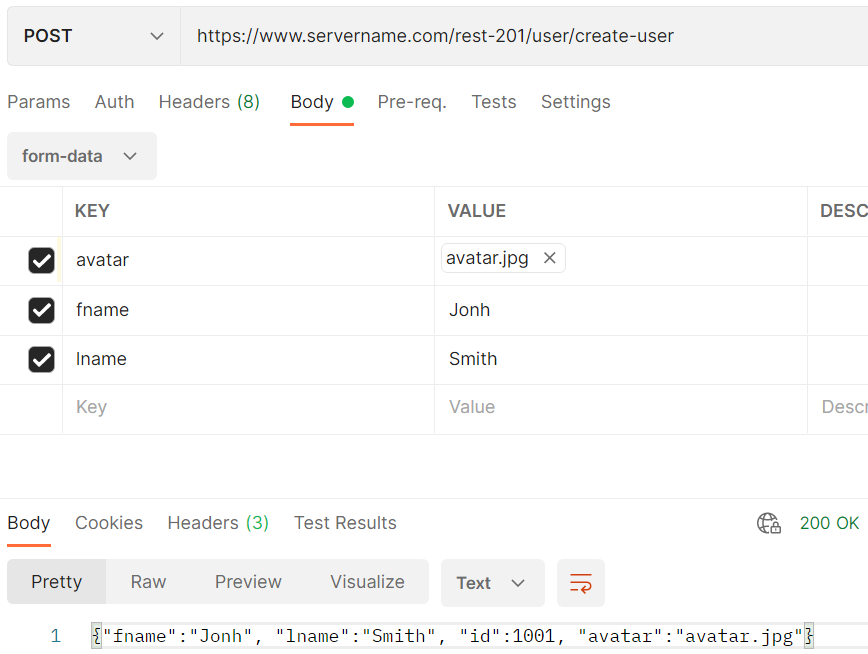

	Below is a screenshot of a post request and result using Postman



  Advanced Features Demonstrated

    Dynamic URI parameters using Param<T>
    File uploads using FileUpload
	 Get entire Request using Request parameter
	 Get AuthenticatedUser using as parameter
    JSON responses using JSON object
    Logging using SLog
    Resource registration using ResourceBuilder


  Supported Resource Parameter Types

    The following parameter types may be used in REST resource handlers:


    Param<T>
    Header
    FileUpload
    QueryString
    Request
    Stream
    Uri
    AuthenticatedUser



    These parameter types allow handlers to access request metadata, headers,
    cookies, query strings, uploaded files, and typed values extracted from the
    URI or request body.
